PG63A-ZA-HT 63mm dia high quality Zinc Alloy Planetary Reducer Gearbox Helix Teeth
The main transmission structure of the planetary gear reducer is: planetary gear, sun gear, and outer ring gear. Due to the structure of the planetary reducer, the minimum single-stage reduction is 3, and the maximum generally does not exceed 10. The number of stages of the reducer generally does not exceed 3. Compared with other reducers, the planetary reducer has high rigidity, high precision, high transmission efficiency, and high Torque, volume ratio, life-long maintenance-free and other characteristics. Because of these characteristics, most planetary reducers are installed on stepper motors and servo motors to reduce speed and increase torque. Match inertia.

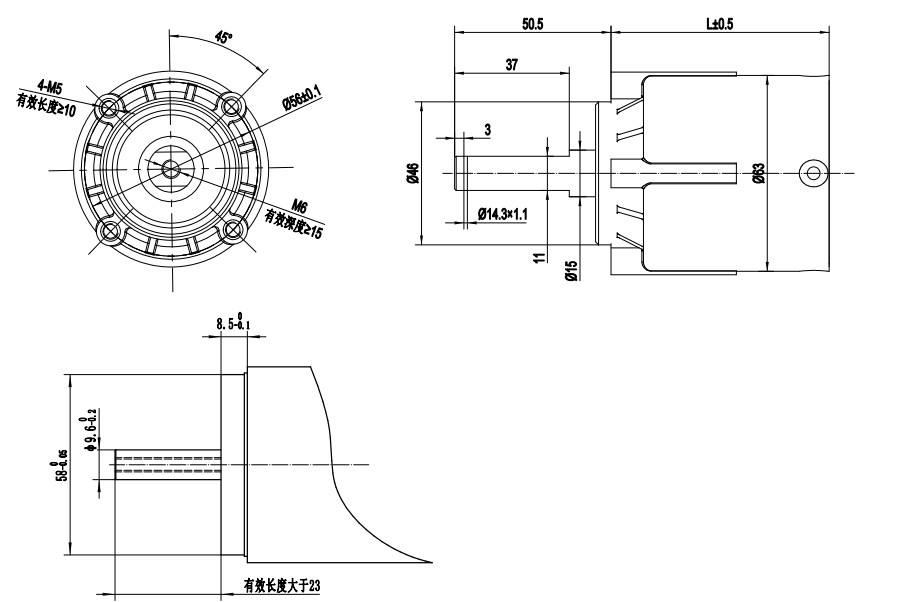

Mechanical Dimension
Gearbox Specification:
| Reduction Ratio | Exact Reduction
Ratio | Rated Tolerance Torque
(Nm) | Momentary Tolerance Torque
(Nm) | Efficiency(%) | Length
(mm) | Weight
(g) | Number of
gear trains |
| 1/8 | 1/8.25 | 3.0 | 8.0 | 81% | 75.5 | 400 | 1 |
Different reduction ratio, torque, weight and length.
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Production Process
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China
Powder metallurgy gearbox:long life and low noise
Zinc alloy gearbox: low cost
Right Angle Gearbox
Worm Gearbox
High-quality Raw Materials
Gearbox Material Placement
Gearbox Assembled
